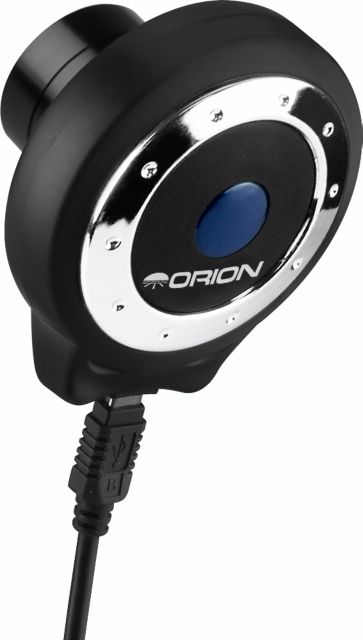

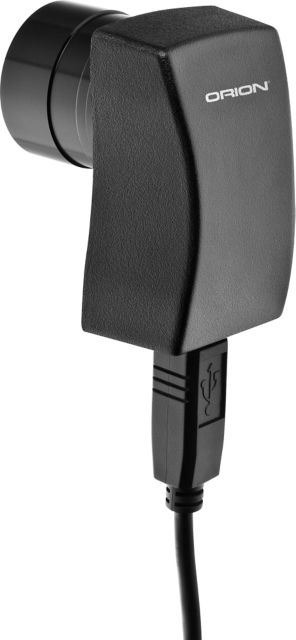

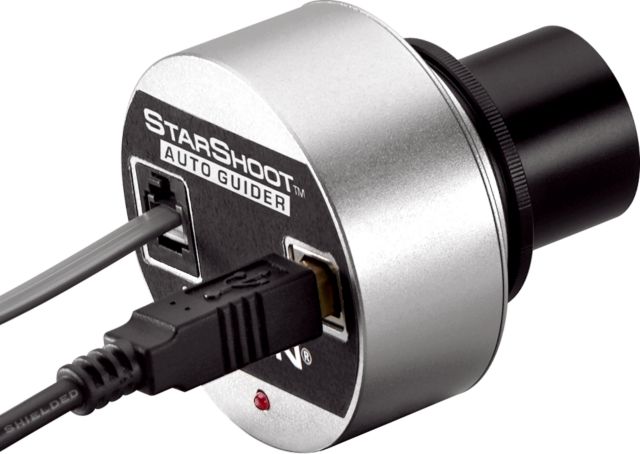

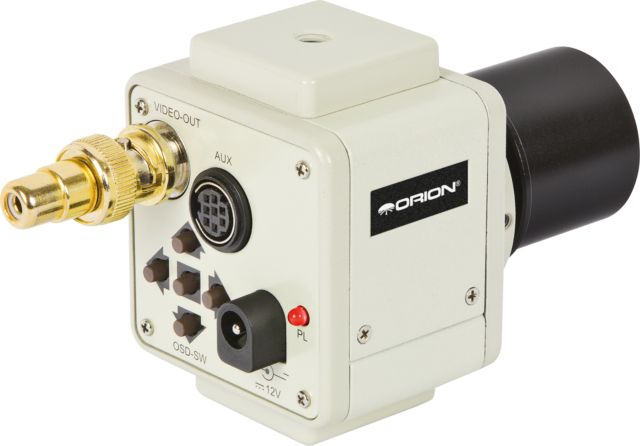

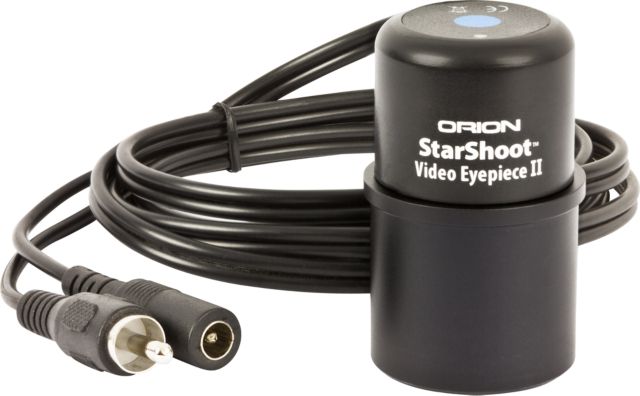

Orion StarShoot USB Eyepiece Camera II | Orion StarShoot Video Eyepiece Camera II | Orion StarShoot Solar System Color Imager IV | Orion StarShoot Solar System Color Imager V | Orion StarShoot Deep Space Video Camera II | Orion StarShoot HD Video/Web Broadcasting Camera | Orion StarShoot AutoGuider | Orion StarShoot AutoGuider Pro Mono |

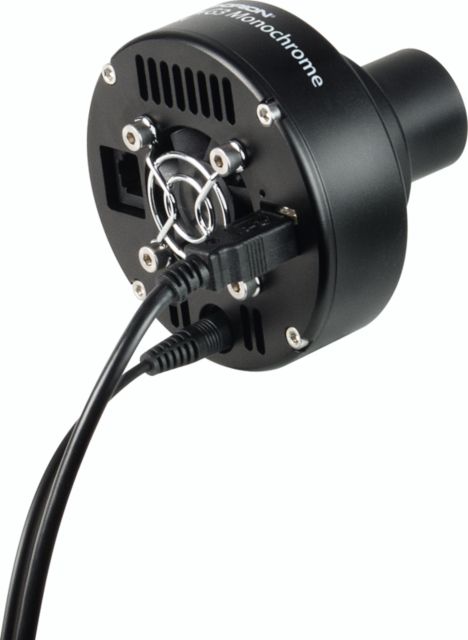

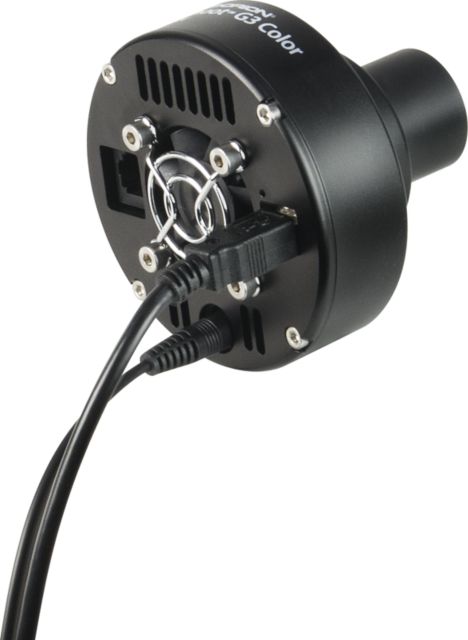

Orion Starshoot All-in-One Camera | Orion Starshoot G3 DeepSpace Color | Orion Starshoot G3 DeepSpace Mono | |
---|---|---|---|---|---|---|---|---|---|---|---|
User Level | BEG | BEG | BEG | BEG/INT | BEG/INT | BEG/INT | INT | BEG/INT/ADV | BEG/INT | INT | INT |
Imaging Chip | Single Shot Color | Color Video | Single Shot Color | Single Shot Color | Color Video | Color Video | Single Shot Mono | Single Shot Color | Single Shot Color | Single Shot Color | Single Shot Mono |
Sensor Size | 1/4" | 1/3" | 1/3" | 1/2.5" | 1/2" | 1/3" | 1/2" | 1/3" | 1/3" | 1/2" | 1/2" |
Pixel Array | 640 x 480 | 720 x 480i | 1280 x 1024 | 2584 x 1936 | 720 x 480i | 1920 x 1080 | 1280 x 1024 | 1280 x 960 | 1280 x 960 | 752 x 582 | 752 x 582 |
Pixel Size | 6.0 x 6.0 | 5.6 x 5.6 | 3.6 x 3.6 | 2.2 x 2.2 | 8.4 x 9.8 | 3.75 x 3.75 | 3.75 x 3.75 | 3.75 x 3.75 | 3.75 x 3.75 | 8.6 x 8.3 | 8.6 x 8.3 |
Max Frame Rate | 30 FPS | 30 FPS | 15 FPS | 51 FPS | 30 FPS | 60 FPS | 200 FPS | 200 FPS | 200 FPS | <1 FPS | <1 FPS |
Exposure Rate | 0.004s to 0.006s | 0.001s to 0.002s | 0.002s to 0.004s | 0.001s to 6s | 0.001s to 4s | 0.001s to 8s | 0.001s to 10s | 0.00002s to 10mins | 0.00002s to 10mins | 0.01s to infinity | 0.01s to infinity |
A/D Conversion | 8 bit | 8 bit | 8 bit | 8 bit | 8 bit | 16 bit | 12 bit | 12 bit | 12 bit | 16 bit | 16 bit |
Thermoelectric Cooling | NO | NO | NO | NO | NO | NO | NO | NO | NO | YES | YES |
Mounting | 1.25" | 1.25" | 1.25" | 1.25" | 1.25" | 1.25" | 1.25" | 1.25" | 1.25" | 1.25", 2" or t-thread | 1.25", 2" or t-thread |
IR Filter | YES | YES | YES | YES | YES | NO | NO | NO | YES | NO | NO |
Software compatibility | |||||||||||
Live Viewing | |||||||||||
Internet Broadcasting | |||||||||||
Terrestrial | |||||||||||
Solar | |||||||||||
Lunar | |||||||||||
Planetary | |||||||||||
Autoguider Capability | |||||||||||
Deep Space |
